Twisted Pair Conductor ACSR (TP.ACSR) ASTM B911

Application :
The ACSR Twisted Pair Conductor is used for MV, HV and EHV overhead, long distance transmission and distribution, especially suitable for overhead applications subject to aeolian vibration and galloping due to wind.

Standards :

Construction :

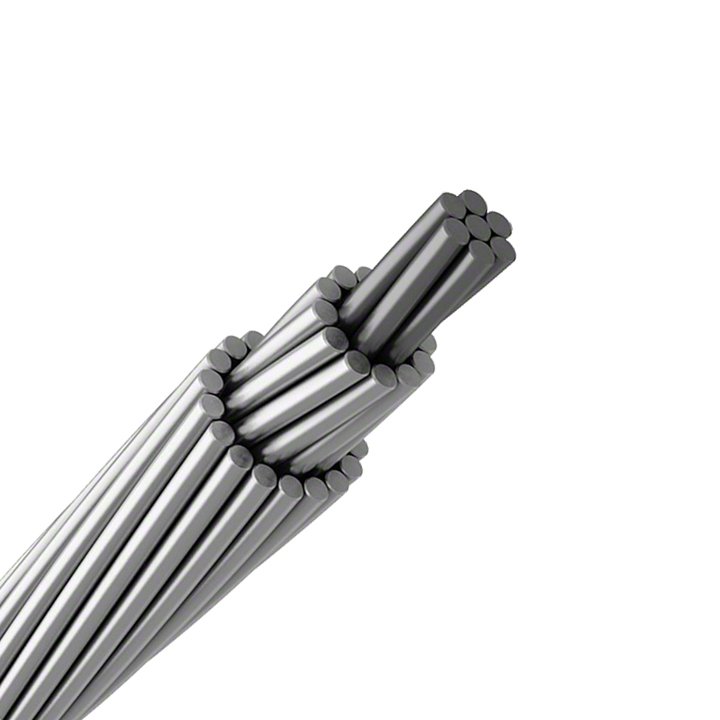

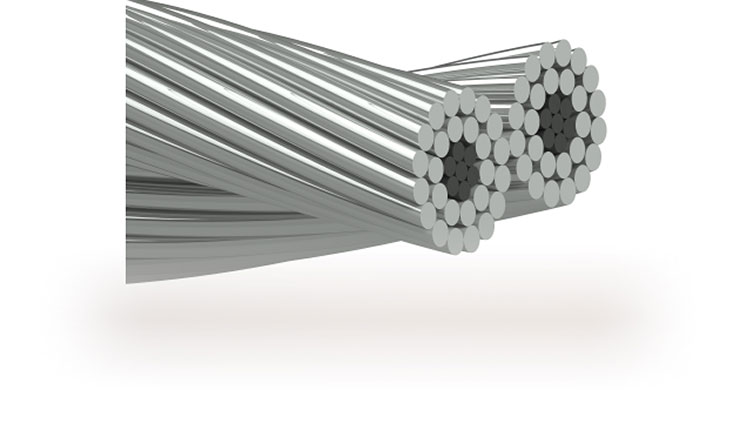

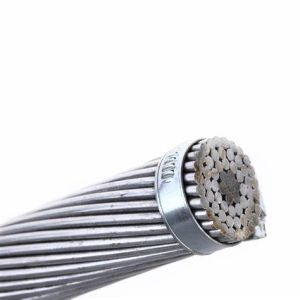

ACSR Twisted Pair Conductor is fabricated from two component conductors of the same size twisted around each other with a left-hand lay. The component conductor is stranded concentrically by aluminum wires with galvanized steel wire(s) in center for reinforcement.
