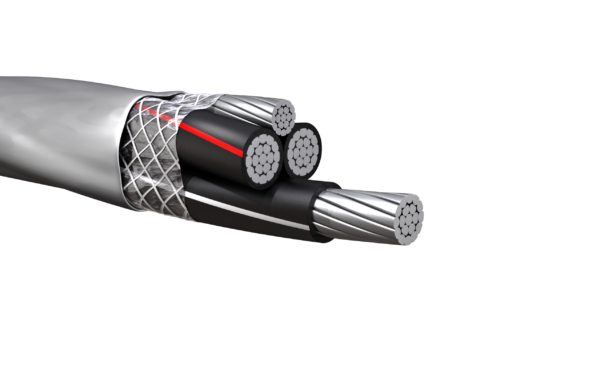

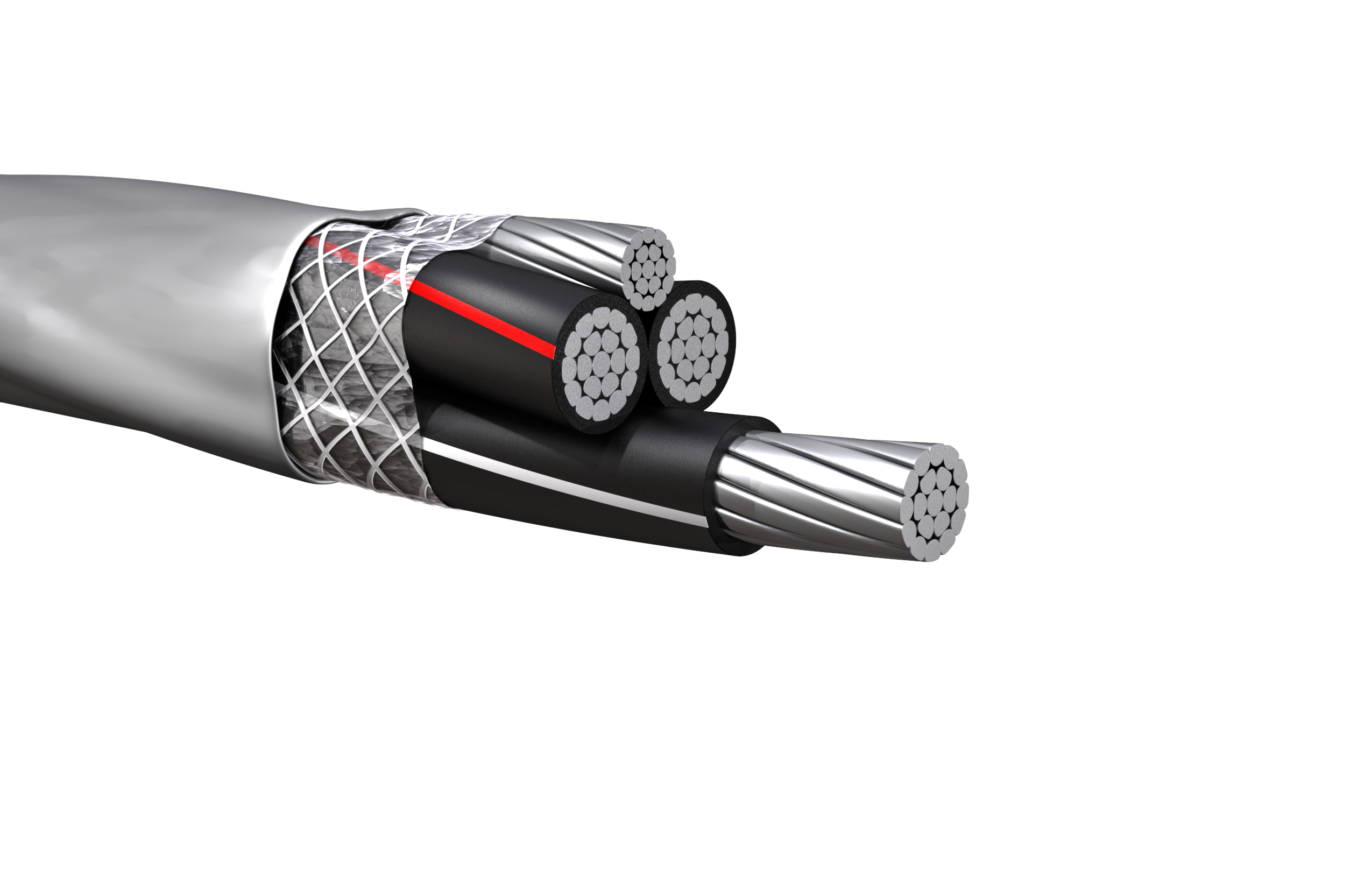

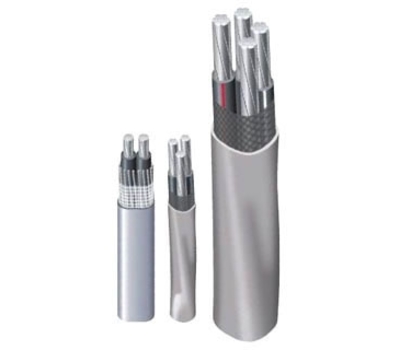

SER Aluminum Service Entrance Cable ASTM B800/B801

Application :
SER is a type SE (service entrance), Style R (reinforcement tape) cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. It is most often used to deliver power from the service drop down to the meter base, and from the meter base to the distribution panel board.

Standards :
UL 44, 854 ASTM B-800, B-801

Construction :
Conductors: Compact strand soft drawn 8000 series aluminum conductor, per ASTM B-801
Insulation: Type XHHW-2 cross linked polyethylene (XLP) insulation.
The conductors are cabled together with a bare aluminum alloy ground.
Jacket: A gray sunlight resistance polyvinyl chloride (PVC) jacket.
